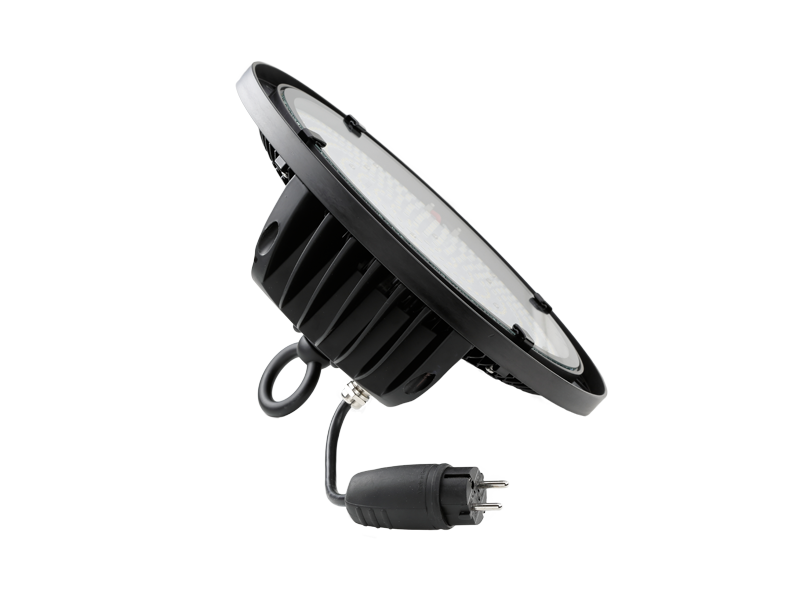

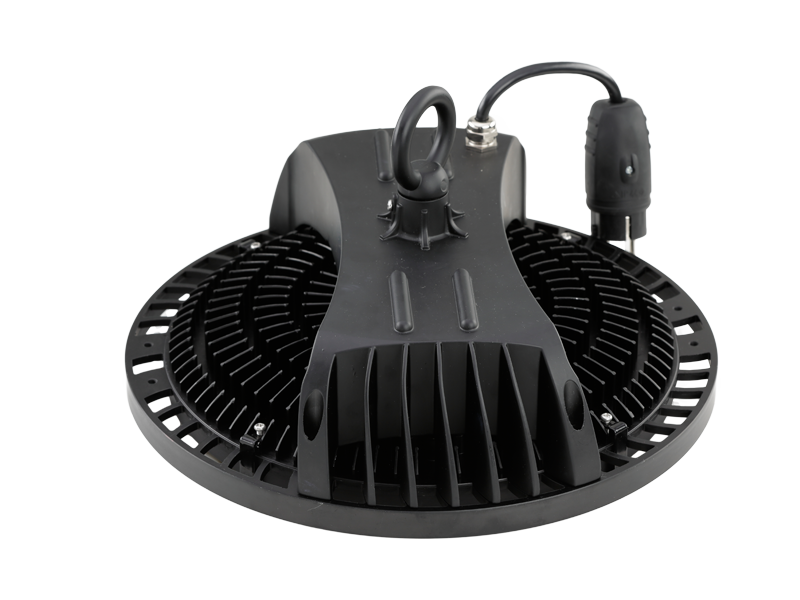

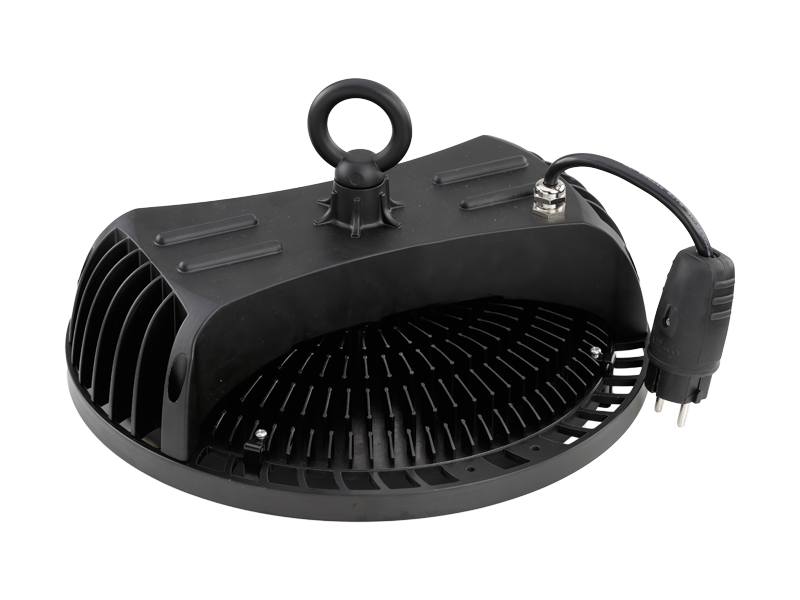

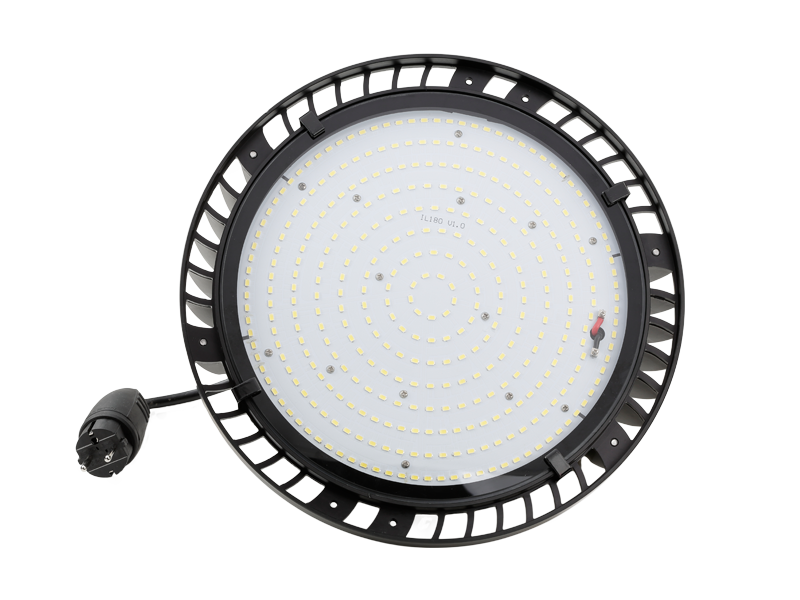

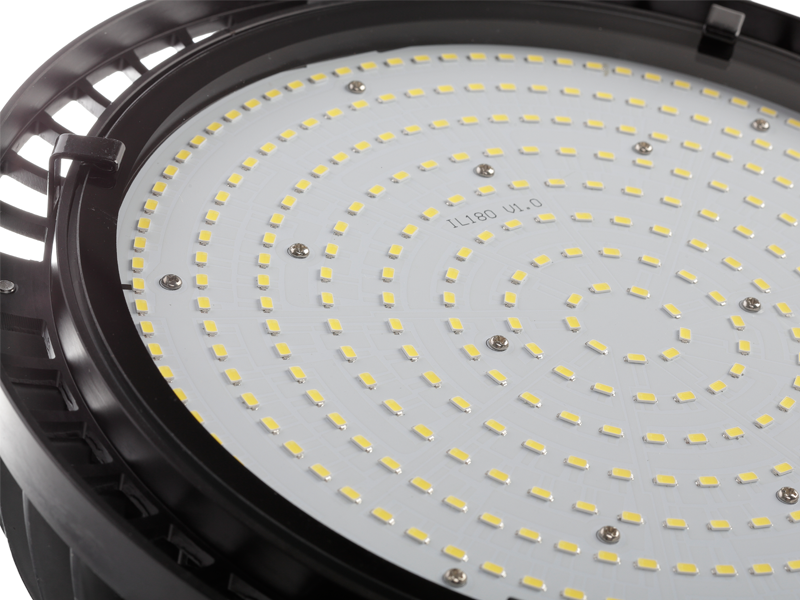

DDK-LED HB UFO

  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image

DDK-LED HB UFO

DOWNLOAD DOCUMENTS

DATASHEET (PDF)

INSTALLATION MANUAL (PDF)

IES / LTD FILES

Basic parameters
  • Light Source
  • IP Rating
  • CRI (Ra>)
  • Warranty (Year)
  • Service Lifetime
  • Material
  • Fixture color
  • Operating Temp.
  • Input Voltage
  • LED Chips
  • Driver brand
  • Certification
  • Photometric test
  • Photometric Lab.
  • LED
  • IP 65
  • 80
  • 5
  • > 80 000 hrs
  • Aluminium
  • Black / White
  • -30/+60
  • AC90-305V 50-60Hz
  • EPISTAR
  • DDK-LED
  • CE, GS, RoHS, UL
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED
features

Energy class A +
Dimmable / DALI
Ies / ltd files on request
Instant on / off / no flickering
cooling fins with forging technik
LED chips Epistar / driver DDK-LED
50% energy saving compared to conventional light sources
suspension, surfaced version with fixed / adjustable bracket

applications

industrial halls
warehouses
garages
large shopping spaces
