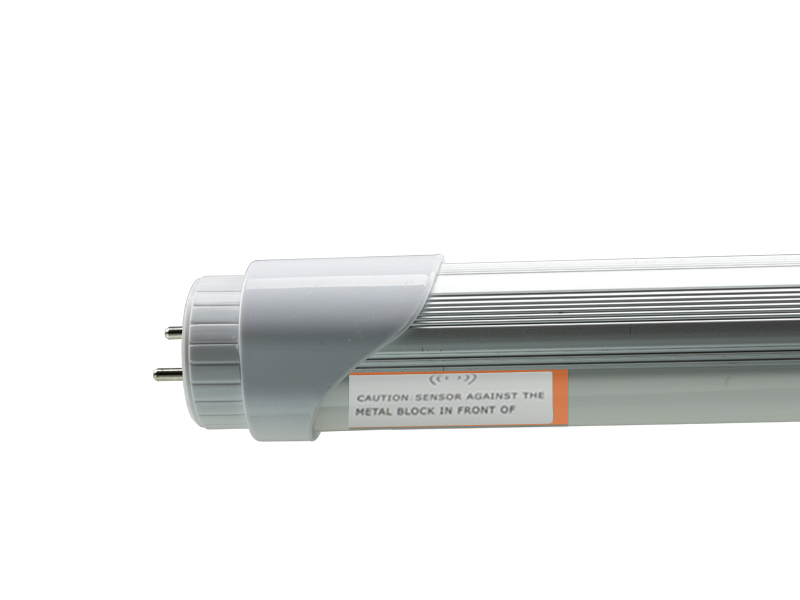

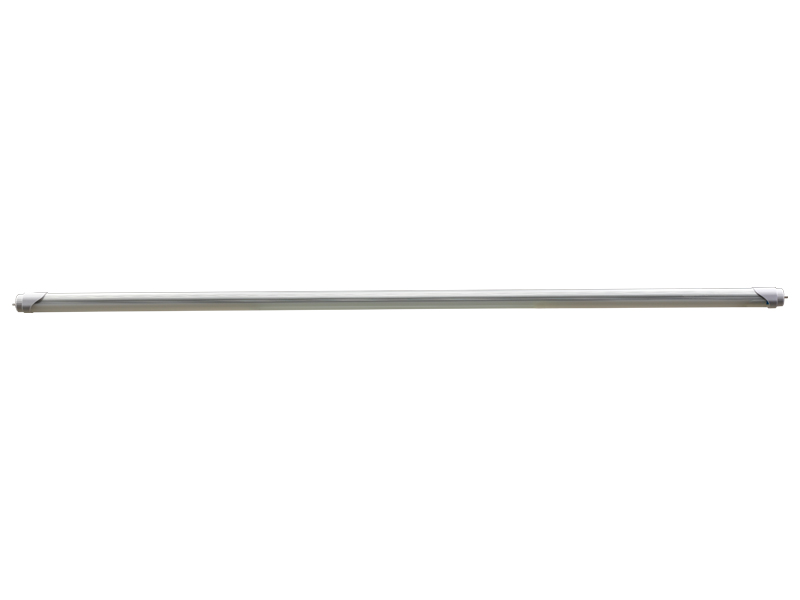

DDK-LED T8 20W 1200 Motion MW Sensor

  • Work Image
  • Work Image
  • Work Image
  • Work Image

DDK-LED T8 20W 1200 Motion MW Sensor

DOWNLOAD DOCUMENTS

DATASHEET (PDF)

Basic parameters
  • Input power
  • Lamp holder
  • IP Rating
  • Luminous flux
  • Beam Angle
  • CRI (Ra>)
  • CCT
  • Material
  • Dimensions ø
  • Lifetime
  • Warranty (years)
  • Input voltage
  • Sensor area
  • Sensor angle
  • Lighting last
  • React time
  • Certification
  • Photometric test
  • Photometric Lab.
  • 20W
  • G13
  • IP20
  • >1980lm
  • 120°
  • >75
  • 5000-5500K
  • Aluminium+PC(Milk)
  • Ø26x1198mm
  • > 80 000 hrs
  • 3 years
  • AC85-277V 50-60Hz
  • 5-10m (adjustable)
  • 140°
  • 20s (adjustable)
  • 0.5s
  • CE, PSE, RoHS, SAA, UL
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

Energy class A+
LED driver built-in
No fickering, no flashing light
High luminous efficiency above 95 lm/w
Simple and easy to install and replace fluorescent lamp directly
Saving up 90% more than fluorescent tube, 60% more than normal LED T8
Sensor and smart IC are integrated inside tubes, no need for additional ballast
In sensor area of 10m, no ambient temperature nor noise interruption (PIR or voice-controlled)

applications

Replacement for conventional T8 fluorescent tubes
Underground parking lots
Basement
Corridors
Warehouse
Passageway
Elevator
Bus stop
