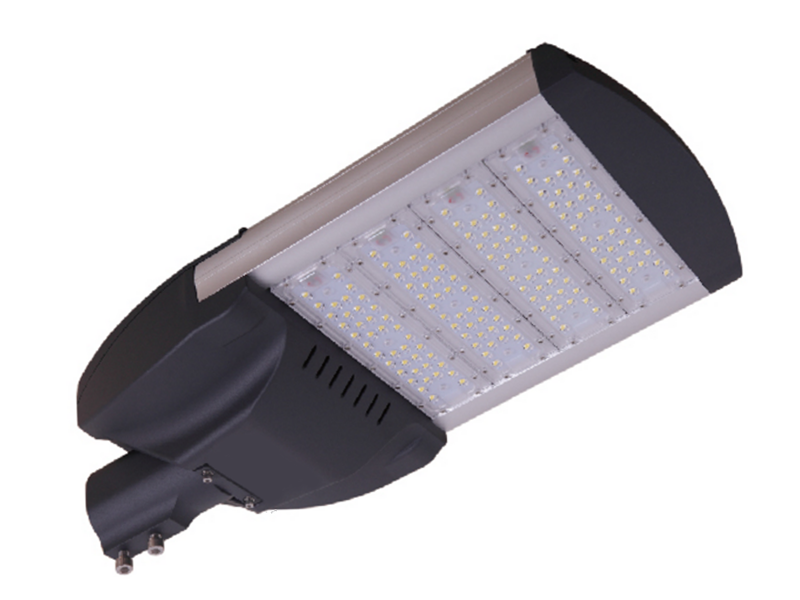

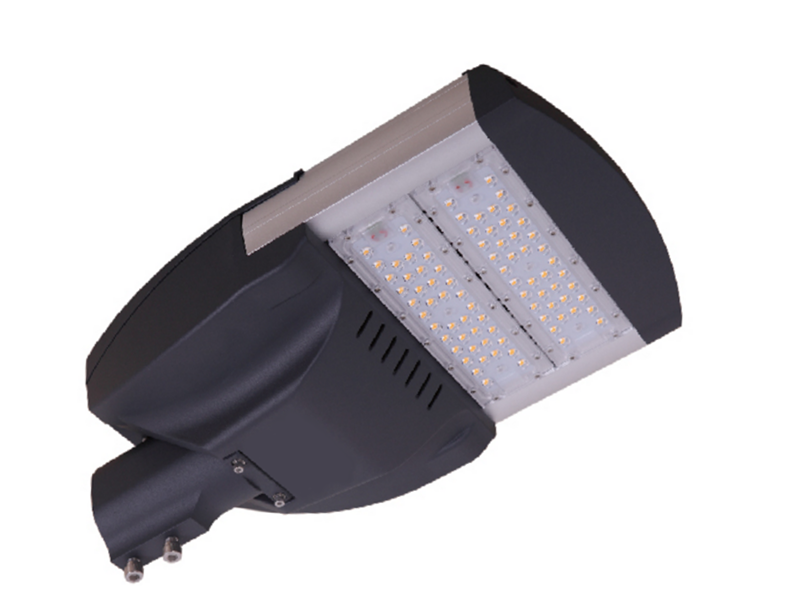

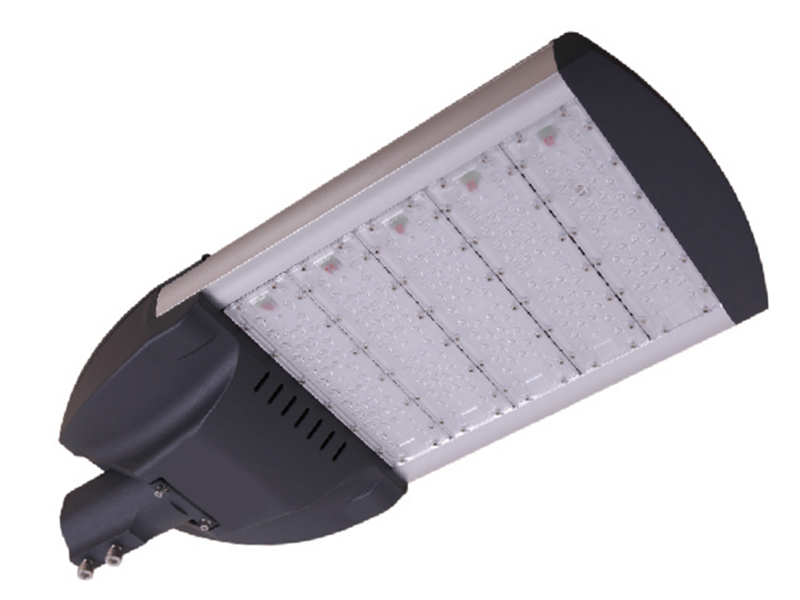

DDK-LED LS

  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image
Basic parameters
  • Light Source
  • IP Rating
  • CRI (Ra>)
  • Beam angle °
  • Luminous Efficiency
  • Warranty (Year)
  • Service Lifetime (hrs)
  • Color temperature
  • Colour
  • Material
  • LED light source
  • Optics
  • Driver
  • Operating Temp. °C
  • Input Voltage
  • Certification
  • Photometric test
  • Photometric Lab
  • Philips LED
  • IP66; IK10
  • 85
  • 150x80°
  • 110-120 (lm/W)
  • 5
  • > 80 000
  • (CCT) 3000-5700 K
  • Black/Silver
  • anodized aluminum
  • PF>0.95
  • 1M,2M,3M,5S
  • MeanWell
  • -40/+50
  • 100-277VAC/12 alebo 24VDC ; 50-60Hz
  • CE, RoHS
  • acc. STN EN 13032
DDK-LED FL
features

Energy efficiency class A +
Philips LED
Mean Well driver
Aluminum finish
Installation on pole / wall mount
The high degree of protection IP66, IK10
Articulated adjustable holder 0-15 °
Easy installation
Applicable for horizontal and vertical boom position
No UV or IR radiation, no mercury pollution

applications

Streets
roads
sidewalks
parking lots
highways,
residential
and other outdoor spaces
