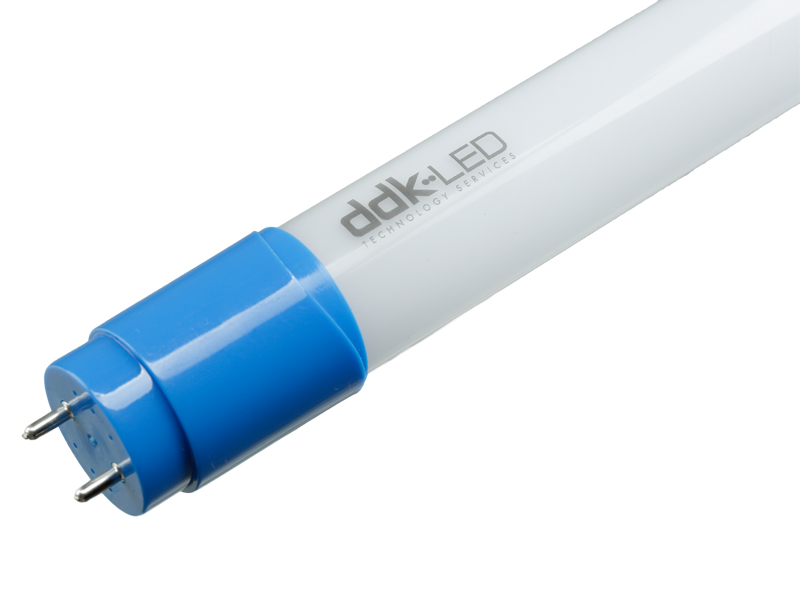

DDK-PRIMUS LED T8 21200

  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image
  • Work Image

DDK-PRIMUS LED T8 21200

download documents

DATASHEET (PDF)

Installation manual (PDF)

IES / LTD FILES

Basic parameters
  • Power
  • Lamp holder
  • IP Rating
  • Luminous flux
  • CRI (Ra>)
  • CCT
  • Material
    and
    components
  • Dimensions mm
  • Lifetime
  • Warranty (years)
  • Input voltage
  • Certification
  • Photometric test
  • Photometric Lab.
  • 2x18W
  • G13
  • IP66
  • 3879lm
  • >80
  • 4000K
  • quality PC in grey color, connecting clips, steel reflector, modified white plate powder coating, diffuser-clear PC
  • L:1272mm, W:145mm, H:111mm
  • > 80 000 hrs
  • 3 years
  • AC100-230V 50-60Hz
  • CE, PSE, RoHS, SAA, UL
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

No glare
Indoor Use
Energy class A+
Short circuit protection
Constant current accuracy 3%
Long lifespan, High light efficiency
Energy saving, no mercury, no UV or IR radiation
Special optical design, lighting distribution uniformity

applications

Replacement for conventional T8 fluorescent tubes
Hotels
Conference/meeting room
Commercial Areas
Residential/Institution Buildings
Schools
Hospitals

used in projects

T Machinery a.s.
New production hall, 3500 m2

DDK Slovakia
Energy saving 63% , Return on investment 3 years
